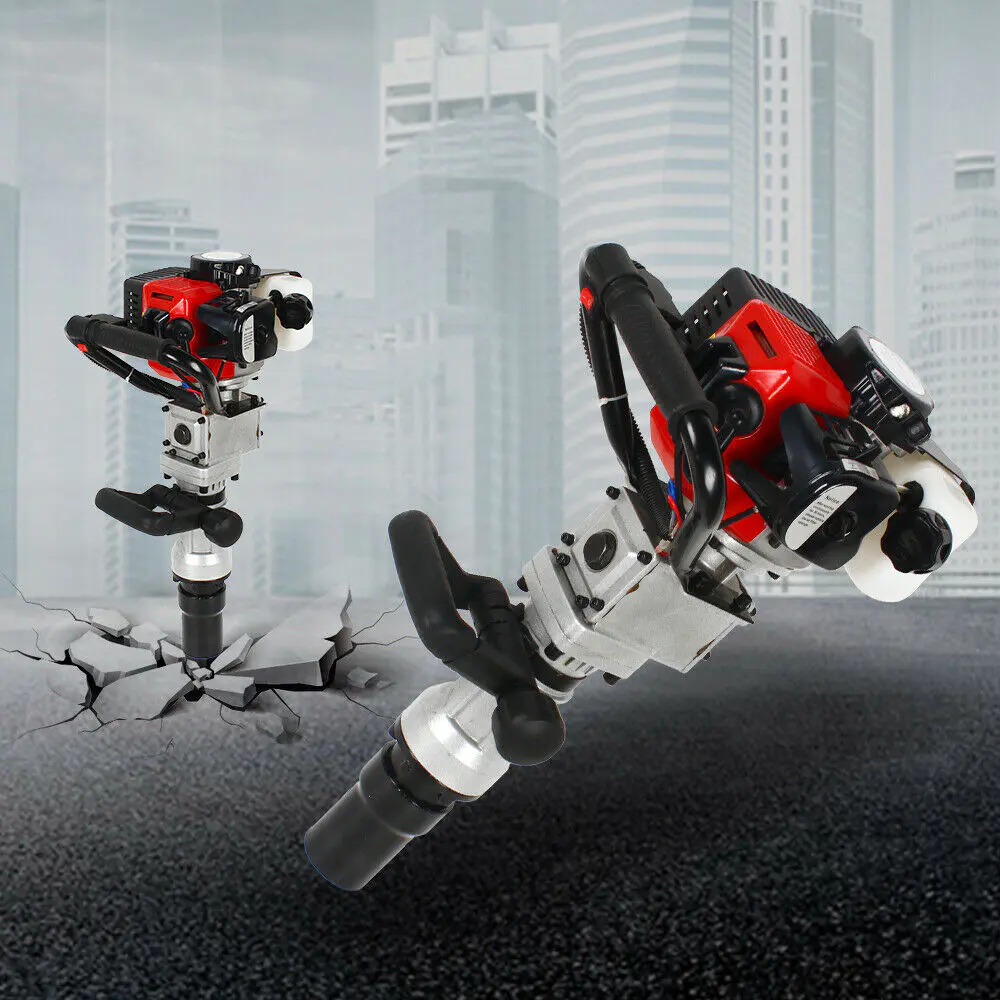

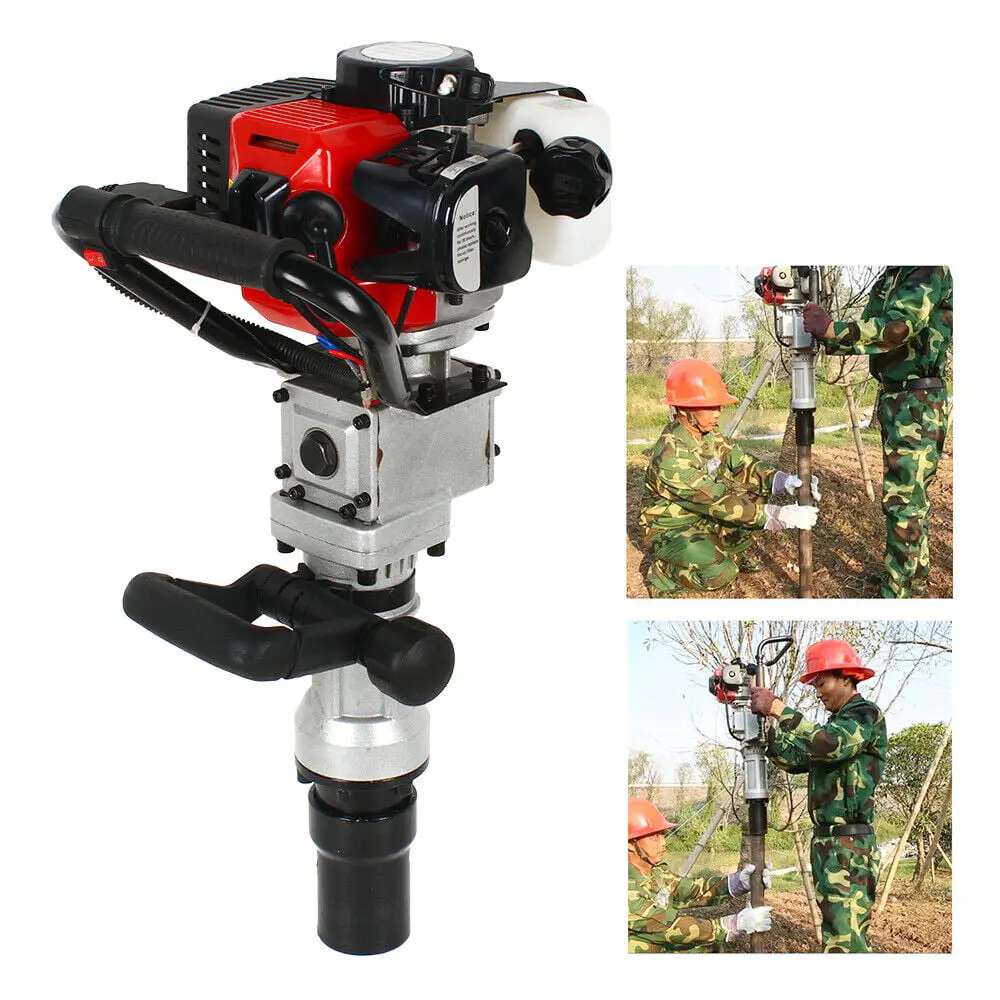

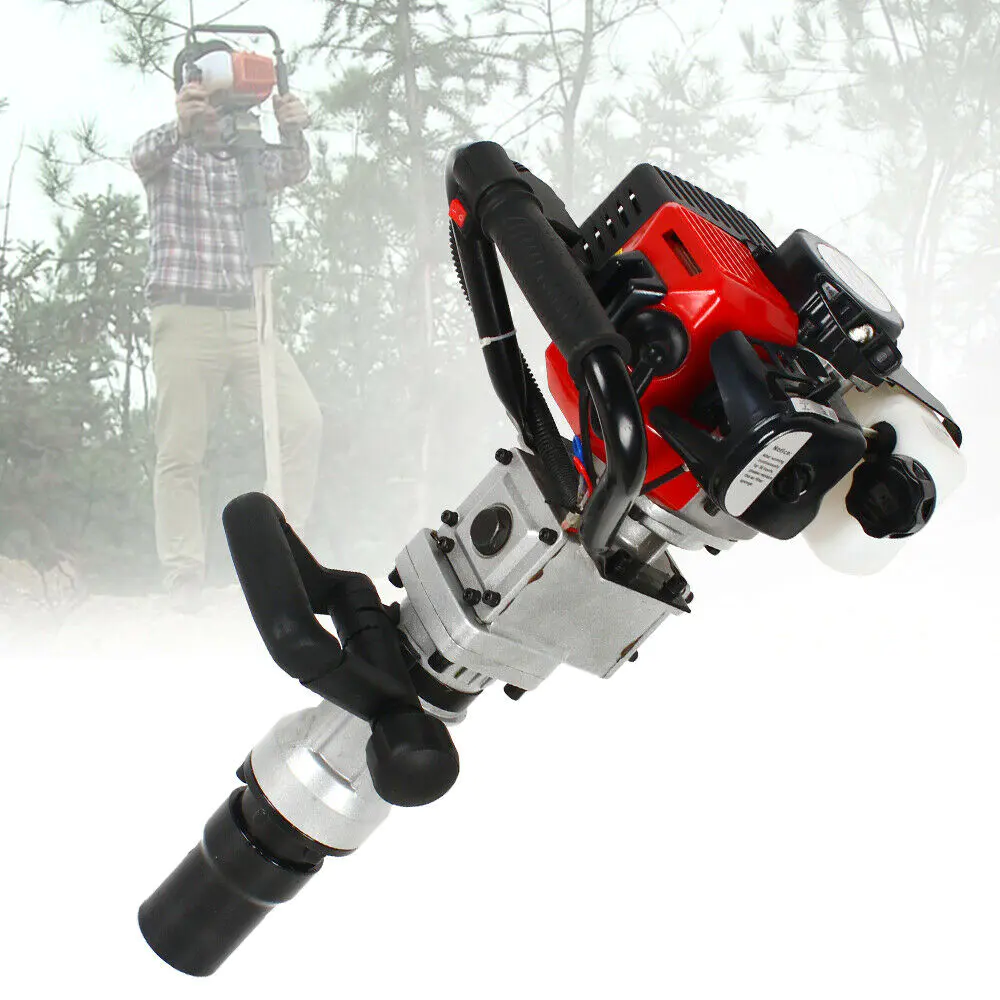

With this portable pile driver piling will become more convenient! This pile driver is equipped with a powerful 32.6cc two-stroke?gasoline engine. Its max rotational speed reaches up to 8500r/min with a power of 0.9kw so it operates very efficiently. It will be your good helper.
How to Operation£ŗ
1.First add the oil mixture to the tank.
2.Install a sleeve of the right size for the pile to be driven.
3.Check that the flame-out switch is in the “-” position.
4.Close the damper when the machine is cold to start and you can open the damper to start when the machine is hot. Wait for the machine to be normal and then open the damper to use.
5.Press the oil bubble to suck up the oil pipe until the air is eliminated.
6.Start the machine and pull the starter continuously.
7.Set the hand grip to the right position.
8.Add oil to the throttle before working until the engine is normal and you can work when you hear a crisp sound.
9.Start working. Hit the depth you want and stop.
10.Stop working by just turning off the flameout switch to the °0± position.
Specifications
Model: Jh-55
Material: ABS Iron Aluminum and Alloy Steel
Color: Red/Blck
Power Source:?Gasoline?Powered
Starter System: Hand Pull Start
Engine Type: 36*32mm/1.41*1.25in Single Cylinder Air Cooling 2-Stroke
One Function Tool Holder: Sleeve
Impact Frequency: 1200-2200r/Min
Impact Energy: 20-45J
Piling Head Size: ¦Õ55mm/2.16in ¦Õ70mm/2.75in
Fuel: Oil Mixture (Gasoline:2-Stoke Engine Oil=25:1)
Fuel Capacity: 0.9L/0.23gal
Fuel Consumotion Rate: Ü0.5L/h(0.13gal/h)
Displacement: 32.6cc
Max. Power and Speed: 0.9kw/8500r/Min
Max. Torque and Speed: 1 .45N.m/5300r/Min
Product Size: 55*27*31cm/21.65*10.62*12.2in
Main Handle Size(L*W): 26*20cm/10.23*7.87in
Secondary Handle Size: 12*15cm/4.72*5.9in
Packing Size: 64.5*34*37cm/25.39*13.38*14.56in
Sleeve Length: 11cm/4.33in
Net Weight: 13kg/28.66lbs

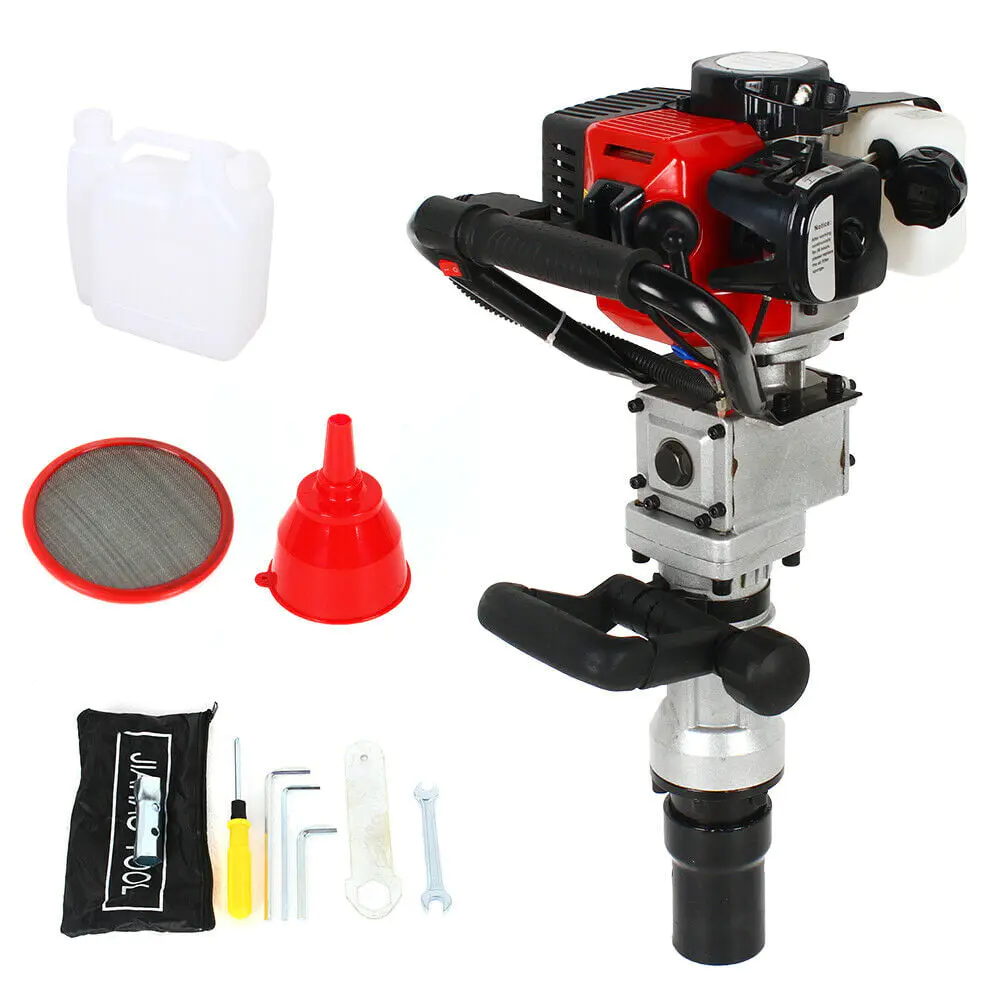

Package Included£ŗ
1*?Gasoline?Pile Driver
2* Sleeves
1* Proportioning Pot
1* Funnel
1* Tool Bag
1* Strainer
All Needed Accessories
- High Efficiency: The powerful 32.6cc two-stroke engine provides impact energy of up to 20-45J and impact frequency of up to 1200-2200r/min realizing efficient handling of various piling work
- Good Heat Dissipation: Multiple cooling holes on the body provide good heat dissipation maintaining stable performance over long periods of time
- Robust and Durable: The high-quality ABS iron aluminum and alloy steel materials are robust and wear-resistant scratch-resistant impact-resistant and rustproof ensuring a long service life and good adaptability to the working environment
- User-friendly Design: The lightweight design(28.66lbs ) is easy to carry and control. At the same time the cordless gasoline power is cordless better for outdoor use
- Complete Accessories: The proportioning pot funnel strainer and installation tool kit are included in the package for your convenience so you don’t need to buy extra
- Convenient Operation: It adopts the hand-pull start and its throttle and flameout switch on the handle is integrated to facilitate your operation
